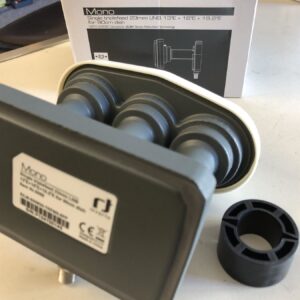

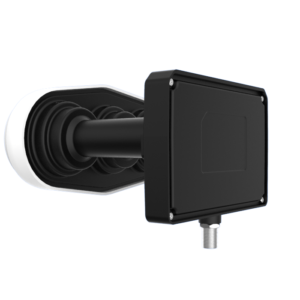

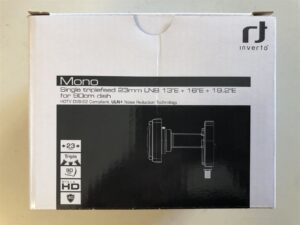

LNB Inverto Single Triplefeed (13.0E+16.0E+19.0E)

Technical specifications
Low band input frequency range	10.7 GHz ~ 11.7 GHz
Low band output frequency range	950 MHz ~ 1950 MHz
Low band LO frequency	9.75 GHz
High band input frequency range	11.7 GHz ~ 12.75 GHz
High band output frequency range	1100 MHz ~ 2150 MHz
High band LO frequency	10.6 GHz
Noise figure	0.2 dB typ. (0.7 dB max.)
LO temperature drift	±3.0 MHz Max.
LO initial accuracy	±1.0 MHz Max.
LO phase noise @ 10 kHz	-90 dBc / Hz max.
Conversion gain	50 dB ~ 62 dB
Gain ripple (over 26 MHz bandwidth)	±0.75 dB
Gain variation (over full band)	±4 dB max.
Image rejection	40 dB min.
1 dB compression point (@ output)	0.0 dBm min.
Control, Satellite A/B/C/D Selection	DiSEqC 1.0 (Sat A* = Hotbird 13° East, Sat B = ASTRA 19.2° East) * Default Satellite Reception
Cross polarization isolation	22 dB Min.
Output VSWR	2.5 : 1
In band spurious level	-60 dBm max.
Current consumption	150 mA Max. @ 11 V ~ 20 V
Operating temperature	-30 °C ~ +60 °C
Output impedance	75 Ω
Output connector type	F-Type (female)
Recommended Dish Size	75 ~ 85 cm (F/D = 0.6)
Weight	270 g

Цена: 1.800.00 ден.

Продуктот е достапен

Контакт

Technical specifications
Low band input frequency range	10.7 GHz ~ 11.7 GHz
Low band output frequency range	950 MHz ~ 1950 MHz
Low band LO frequency	9.75 GHz
High band input frequency range	11.7 GHz ~ 12.75 GHz
High band output frequency range	1100 MHz ~ 2150 MHz
High band LO frequency	10.6 GHz
Noise figure	Low band 1.1 dB max. High band 1.0 dB max.
LO temperature drift	± 3.0 MHz max.
LO initial accuracy	± 1.0 MHz max.
LO phase noise @ 1 kHz	-55 dBc/Hz
LO phase noise @ 10 kHz	-80 dBc/Hz
LO phase noise @ 100 kHz	-100 dBc/Hz
Conversion gain	50 ~ 62 dB min.
Gain variation (over full band)	±6 dB max.
1 dB compression point (@ output)	0 dBm min.
Cross talk	20 dB min.
Control, Satellite A/B/C/D Selection	DiSEqC 1.0 (Sat A* = Eutelsat 16° East, Sat B = Hotbird 13° East, Sat C = ASTRA 19.2° East) * Default Satellite Reception
Polarity info	Polarity , Band & Satellite Selection V, L, 16°E 13V, 0kHz, DiSEqC1.0: Sat A Polarity , Band & Satellite Selection V, H, 16°E 13V, 22kHz, DiSEqC1.0: Sat A Polarity , Band & Satellite Selection H, L, 16°E 18V, 0kHz, DiSEqC1.0: Sat A Polarity , Band & Satellite Selection H, H, 16°E 18V, 22kHz, DiSEqC1.0: Sat A Polarity , Band & Satellite Selection V, L, 13°E 13V, 0kHz, DiSEqC1.0: Sat B Polarity , Band & Satellite Selection V, H, 13°E 13V, 22kHz, DiSEqC1.0: Sat B Polarity , Band & Satellite Selection H, L, 13°E 18V, 0kHz, DiSEqC1.0: Sat B Polarity , Band & Satellite Selection H, H, 13°E 18V, 22kHz, DiSEqC1.0: Sat B Polarity , Band & Satellite Selection V, L, 19.2°E 13V, 0kHz, DiSEqC1.0: Sat C Polarity , Band & Satellite Selection V, H, 19.2°E 13V, 22kHz, DiSEqC1.0: Sat C Polarity , Band & Satellite Selection H, L, 19.2°E 18V, 0kHz, DiSEqC1.0: Sat C Polarity , Band & Satellite Selection H, H, 19.2°E 18V, 22kHz, DiSEqC1.0: Sat C
Output VSWR	2.5 : 1 max.
In band spurious level	-55 dBm max.
Current consumption	150mA max. (10 VDC ~ 20 VDC)
Operating temperature	-30 °C ~ +60 °C
Output impedance	75 Ω (F-type)
Output connector type	F-Type (female)
Recommended Dish Size	85 cm (F/D = 0.6)
Weight	367 g
Logistical info
Packaging dimensions (W x D x H)	14,6 cm x 11,6 cm x 10,3 cm
Packaging weight	0,375 kg
Quantity per Carton	32 pcs
Carton dimensions (W x D x H)	60,4 cm x 22,6 cm x 48,4 cm
Carton weight	15,33 kg
Quantity per pallet	384 pcs
