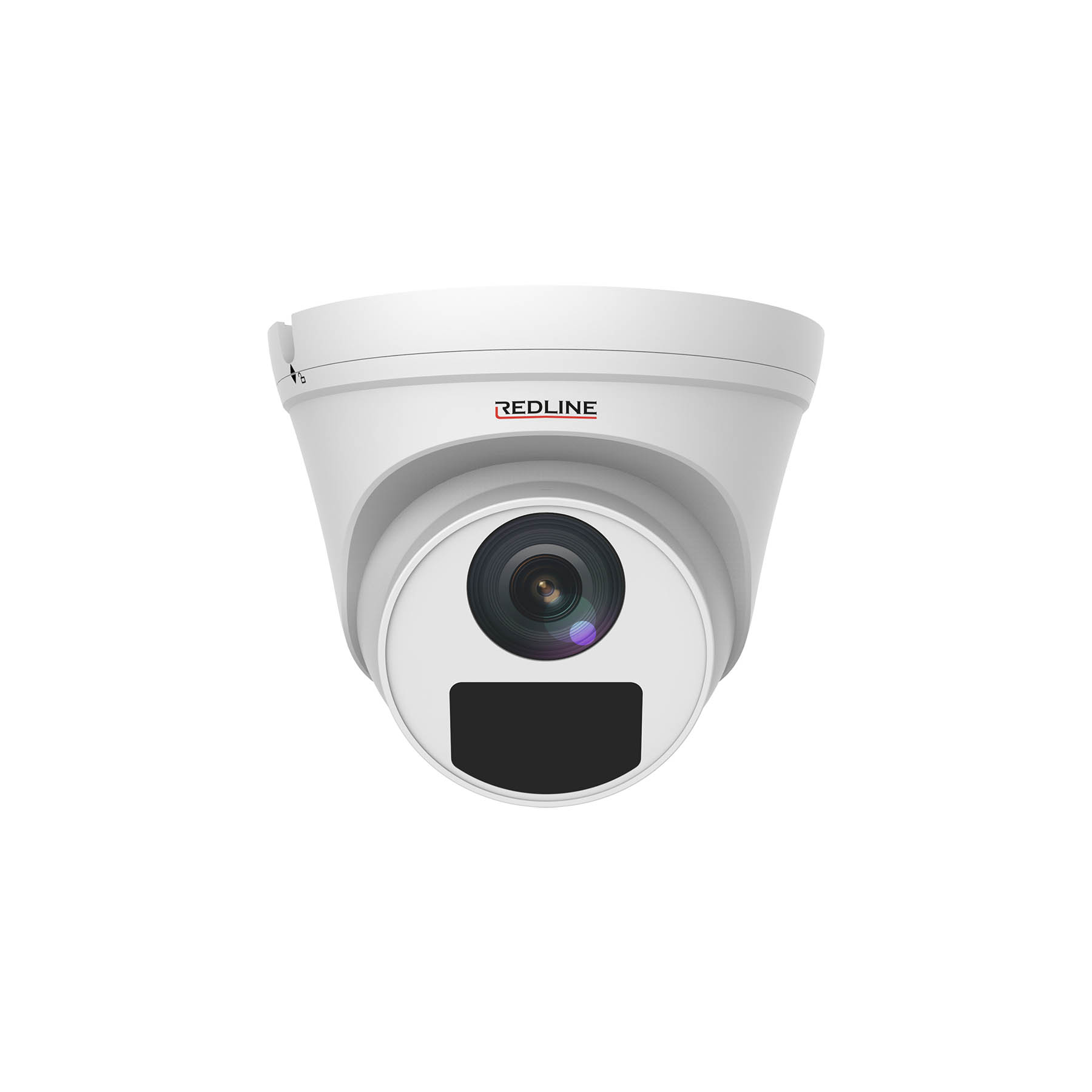

IPC-565U IP Camera 5mp Metal Dome
| Model Name | IPC-565U |
| Case | Metal-Dome |
| Sensor | 1/2.7″, 5.0 Mp, progressive scan, CMOS |
| Lens | 4.0mm@F2.1 |
| DORI Distance | Lens (mm) 4.0, Detect (m) 80.0, Observe (m) 32.0, Recognize (m) 16.0, Identify (m) 5.6-8.0 |
| Angle of View (H) | 112.7° 86.5° |
| Angle of View (V) | 60.1° 41.4° |
| Angle of View (O) | 146.5° 106.4° |
| Adjustment angle | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR on |
| Digital noise reduction | 2D/3D DNR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| IR Range | Up to 30m (98ft) IR range |
| Defog | Digital Defog |
| WDR | DWDR |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps; Sub Stream: 720P (1280*720), Max 20fps |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
| Network | 10/100M Base-TX Ethernet |
| Power | DC 12V±25%, PoE, Power consumption: Max 4.5W |
| Dimensions (L × W × H) | 142.1 × 62.4 × 65.2mm (5.6” × 2.5” × 2.6”) |
| Weight | 0.18kg (0.40lb) |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Цена: 4.400.00 ден.
Продуктот е достапен
